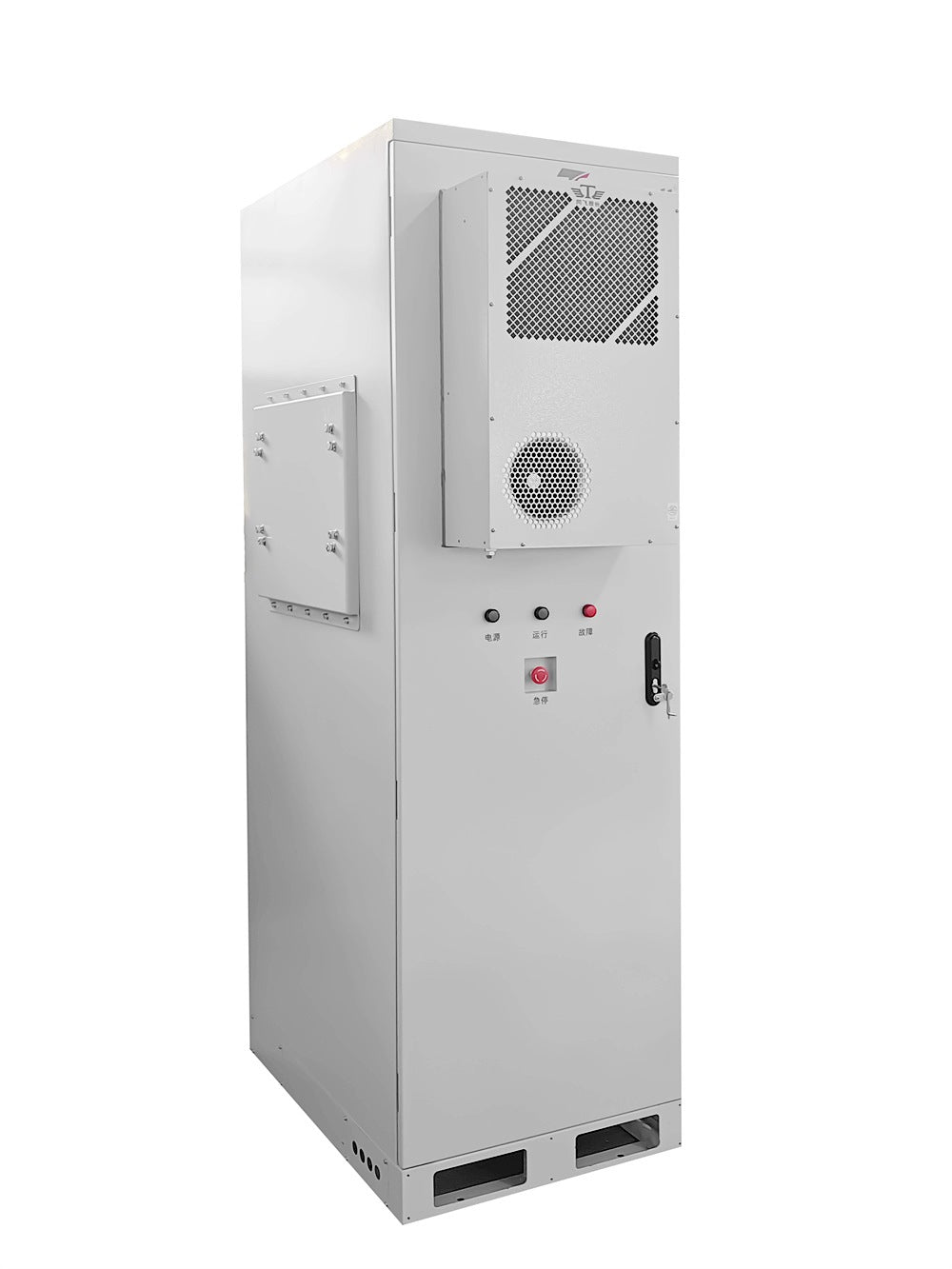

Tewaycell High Voltage LiFePO4 Battery 100KWH 215KWH Industrial and Commercial Storage System Scalable DC Power Cabinet with BMS Integration
Free Shipping, Free customs duties and Free tax, you don't need to pay any other fees!
Free Shipping & TAX:
Our current price is the final price, free shipping and tax, you don't need to pay any other fees.

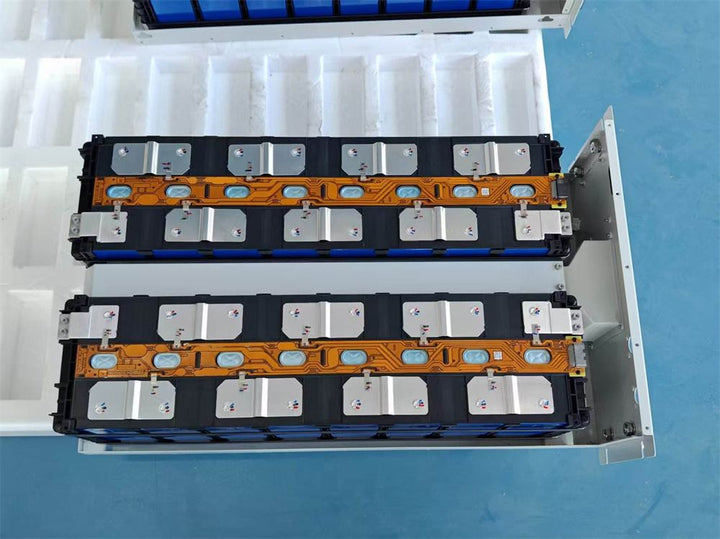

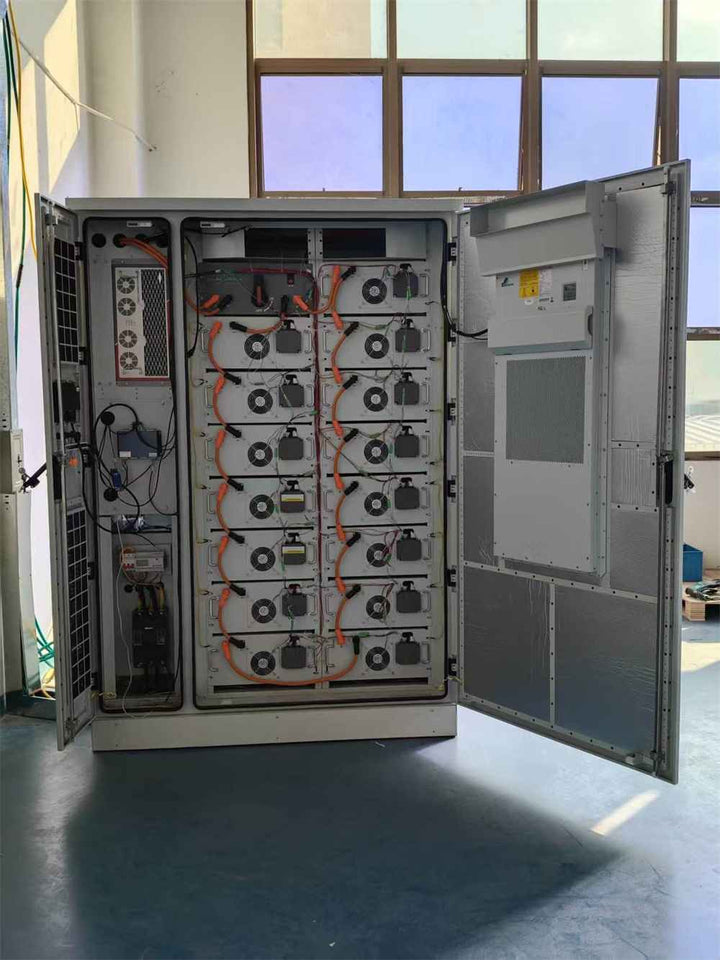

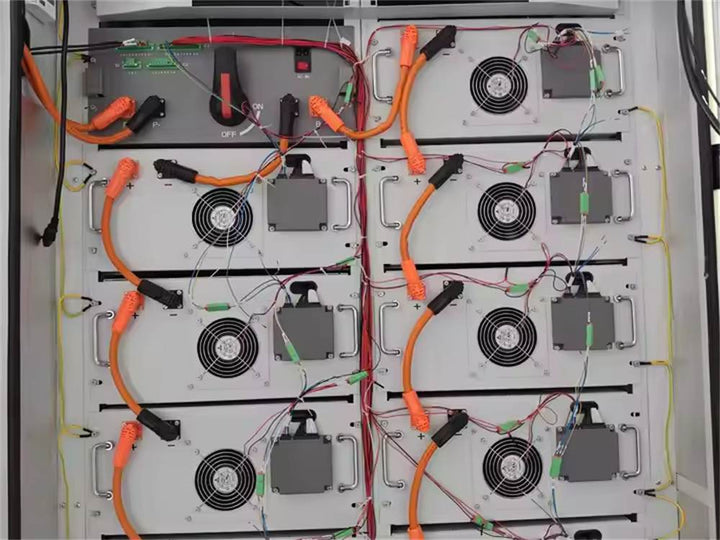

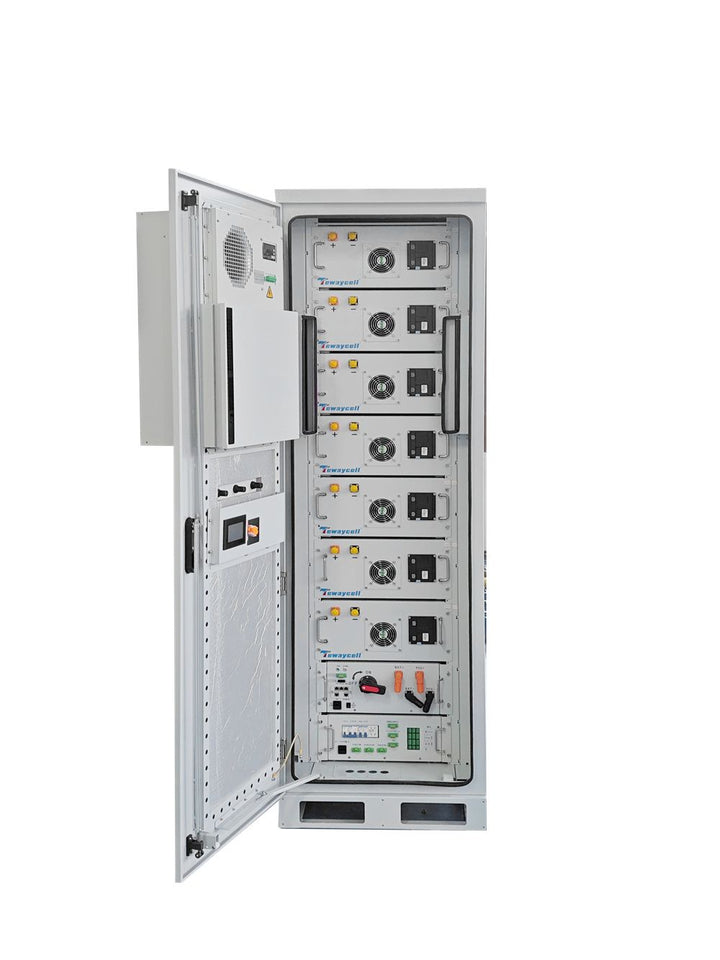

【Efficient and Stable Battery System】: Equipped with 7/15 sets of 51.2V/280Ah battery packs, each with BMS slave control system, which can achieve accurate battery management.
【Intelligent Management】: Built-in BMS (Battery Management System) for real-time monitoring of voltage, temperature, and SOC.

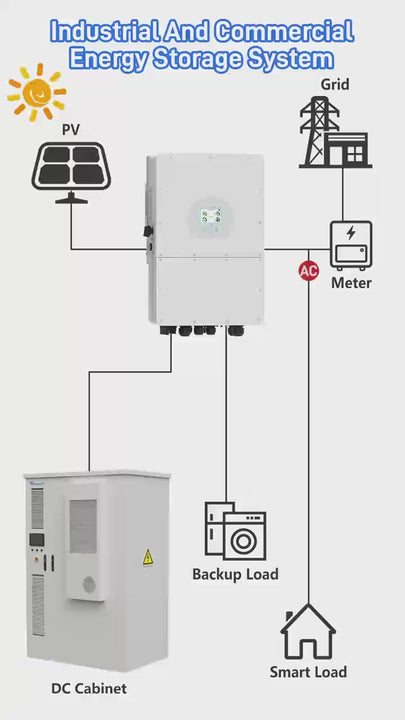

【Typical Applications】: Peak shaving & load shifting for factories, data centers, or retail; Solar energy storage; Backup power for critical industrial equipment.

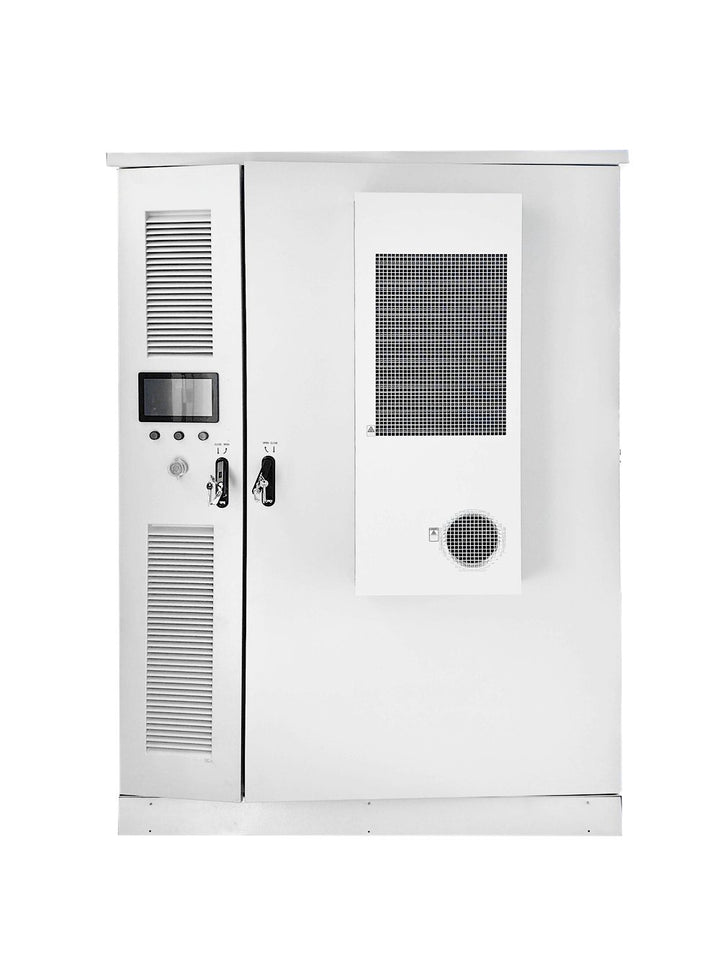

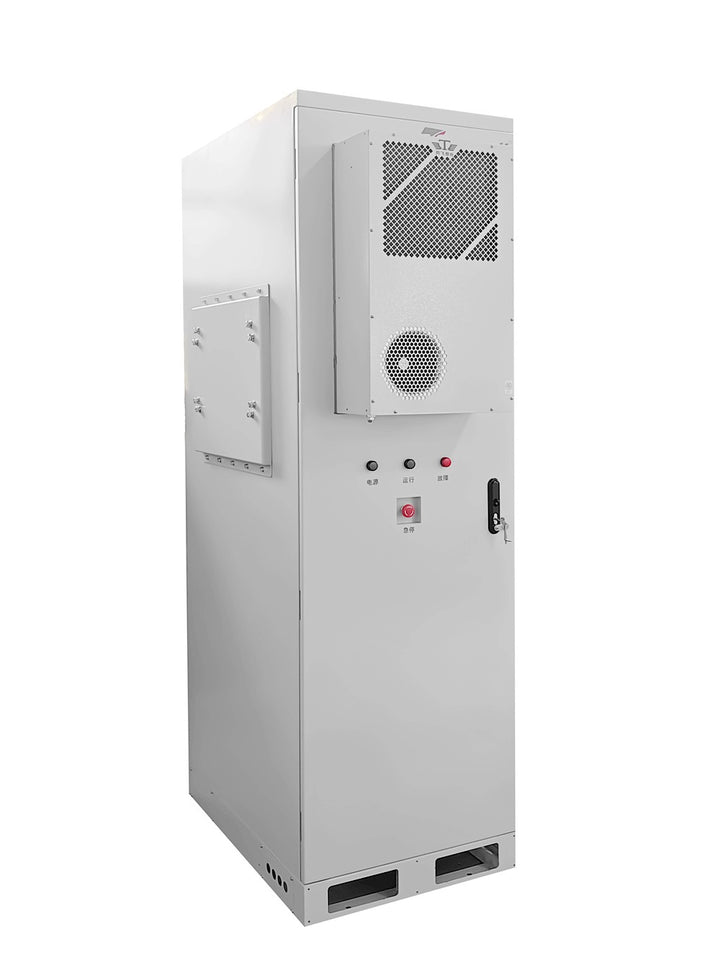

【High Protection and Durability】: Outdoor cabinet with integrated fire protection system, IP54 protection level, dustproof, waterproof and anti-corrosion, adapting to all-weather operation.
【Notes on parallel and delivery】: If you want to connect products in parallel, please order them all at once, because high-voltage batteries purchased at different times cannot be connected in parallel; in order to ensure that the products are not damaged during long-distance transportation, the DC cabinet and battery will be shipped separately, so customers need to assemble the products themselves after receiving them.
Specification:
Model | TW-100KWH | TW-215KWH |
Battery Type | LiFePO4 | LiFePO4 |
Capacity | 280Ah@0.2C,25℃ | 280Ah@0.2C,25℃ |
Voltage | 358.4V | 768V |
Energy | 100kWh@0.2C,25℃ | 215kWh@0.2C,25℃ |
Operating voltage | 302.4V~403.2V | 648V~864V |
Standard charging current | 50A@25℃ | 50A@25℃ |
Max continuous charging current | 200A@25℃ | 200A@25℃ |
Standard discharge current | 50A@25℃ | 50A@25℃ |
Max continuous discharge current |
200A@25℃ | 200A@25℃ |
Cycle | >8,000 times @80%DOD,0.2C,25℃ | >8,000 times @80%DOD,0.2C,25℃ |
CoolingType | Air cooling | Air cooling |
Protectionlevel | IP54 | IP54 |

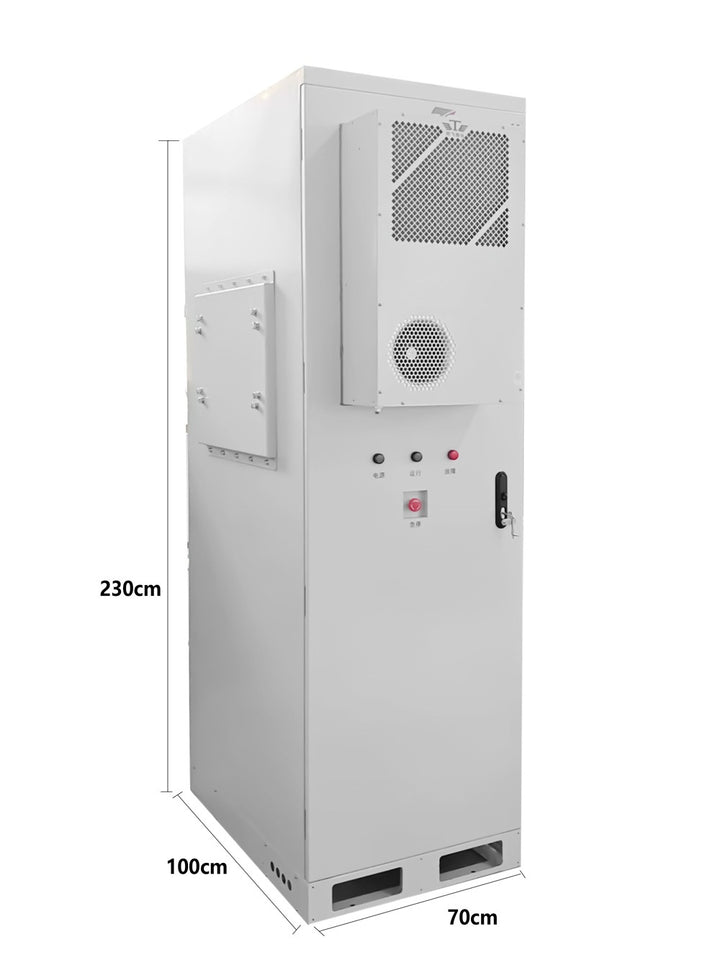

Size(W*D*H) | 700*1000*2330 mm | 1000*1290*2330mm |
Operating temperature | "Charge:0~+55℃ Discharge:-20~+55℃" | "Charge:0~+55℃ Discharge:-20~+55℃" |
Storage temperature | 0~+40℃ | 0~+40℃ |
Operating humidity | ≤95%RH | ≤95%RH |
Altitude | 3000m | 3000m |
Number of parallelation | Up to 16 units in parallel | Up to 16 units in parallel |
Certification | CE | CE |
