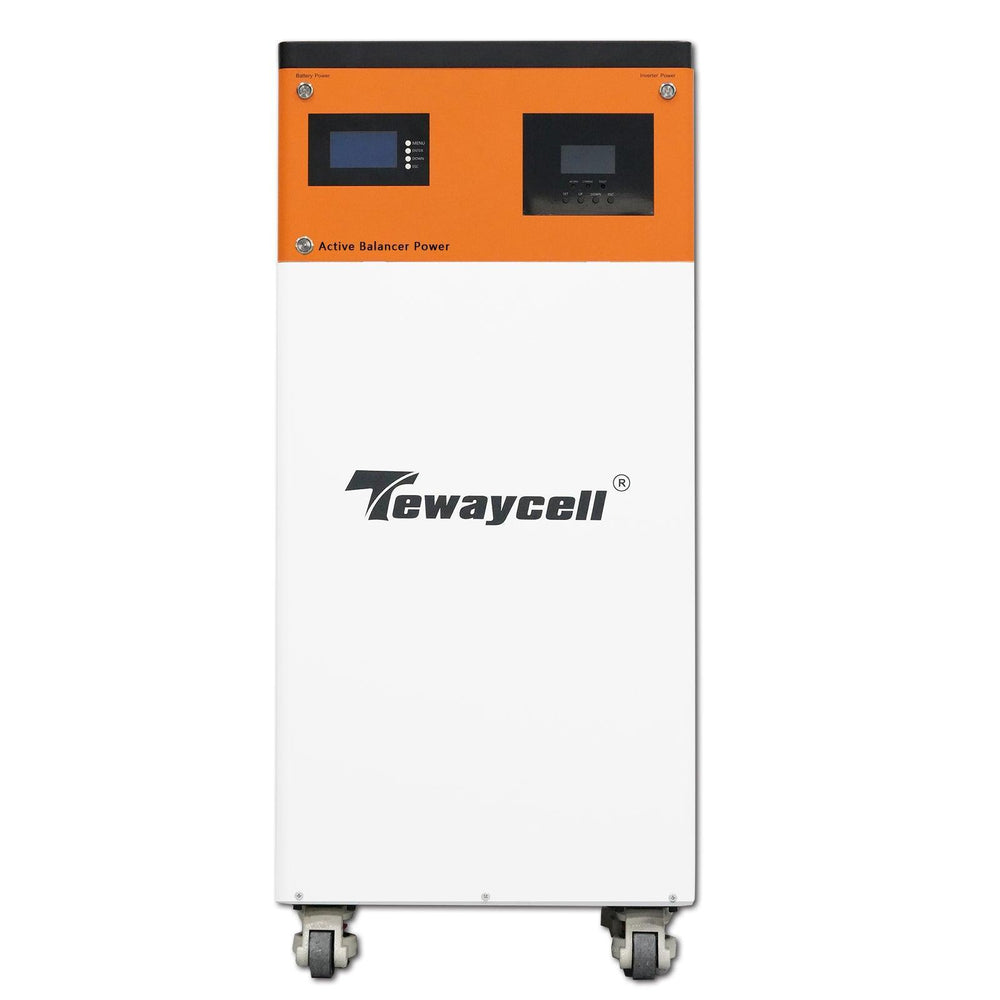

Tewaycell 48V 200Ah 10Kwh All-in-one Mobile ESS Built-in 5KW Hybrid Off-grid Inverter,BMS,Equalization Module
Free Shipping & TAX
Our current price is the final price, free shipping and tax, you don't need to pay any other fees.
No tax is collected, and you don't need to pay any additional taxes.
Note 1: Please pay attention to the description. The product in this link is a "EU Standard" model.
【Feature】: Tewaycell 48V 200Ah 10Kwh All-in-one battery built-in 5KW inverter with active balancer module and lifepo4 temperature-sensitive fire extinguisher; Battery and inverter integrated into one, easy to install, plug and play.
【Energy Expansion】: Tewaycell 10Kwh All-in-one battery built-in 5KW inverter, it can connect all in one battery of the same model to form three phases system or just to expand capacity; It can also connect 10KWH battery (without inverter) to expand capacity，but the battery model must be the same.
【Usage】: Tewaycell 10Kwh All-in-one ESS perfect for solar home systems, power outages, off-grid living.
【Note】：If you want to expand your system, please order products from the same store and tell the staff your original order number.
SPECIFICATIONS
BATTERY:
Nominal Voltage: 51.2V
Nominal capacity: 200Ah
Battery Energy: 10240Wh
Internal resistance: ≤100mΩ
Active Balancer: 0~5.5A, 5mV
Fire Extinguisher Type: LFP Temperature sensing
Cycle Life: 6000+ Cycles @ 0.2C Charging/Discharging at 50%DOD,Until 70% Capacity.
Self discharge: ≤3.5%（every month@25°C）
Charging voltage: 51.2~58.4V
Standard charging current: 40A
Maximum sustained discharge: 100A
Standard discharge current: 40A
Maximum discharge current: 100A
Maximum pulse current: 200A（＜30S）
Charging temperature: 0°C~45°C
Discharge temperature: -20°C~60°C
Dustproof and waterproof rating: IP45
Shell material: SPCC
Size: 1005x450x300mm
Weight:110kg
Connection port: M8*7+M12*2
Communication Ports: RS485*3+CAN*1+RS232*1
Warrantty: 10 years Life, 5 years Warranty
INVERTER：
PV CHARGE
PV Charge Type: MPPT
Maximum Input Power: 5500W
PV Charging Current: 0~100A
PV Operating Voltage Range: 120~500V
MPPT Voltage Range: 120~450V
AC CHARGE
Maximum Charge Power: 3150W
AC Charging Current Range: 0~60A
Rated Input Voltage: 220/230Vac
Input Voltage Range: (170Vac~280Vac) ±2%/(90Vac-280Vac)±2%
AC OUTPUT
Rated Output Power: 5500W(16S)
Maximum Output Current: 22A
Frequency: 50Hz/60Hz
Overload Current: 40A
BATTERY INVERTER OUTPUT
Rated Output Power: 5500W(16S)
Rated Output Voltage(Vac): 230Vac
Frequency: 50Hz
Auto Switch Period: ＜15ms
THD: ＜3%
Download:
Data Sheet Specification.pdf
User Manual.pdf
Precautions
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
