EVE MB56 3.2V 628Ah LiFePO4 Battery Cell-Brand New Grade A with QR Code
Free Shipping, Free customs duties and Free tax, you don't need to pay any other fees! DDP Shipping method!
Free flexible busbar, epoxy resin board, and flange nuts.
Brand New and Grade A LiFePO4 Cells, 8000+Deep Cycles.
Perfect for DIY Off-Grid Solar Power Application.
EVE MB56 3.2V 628Ah LiFePO4 Battery Cell – Key Features

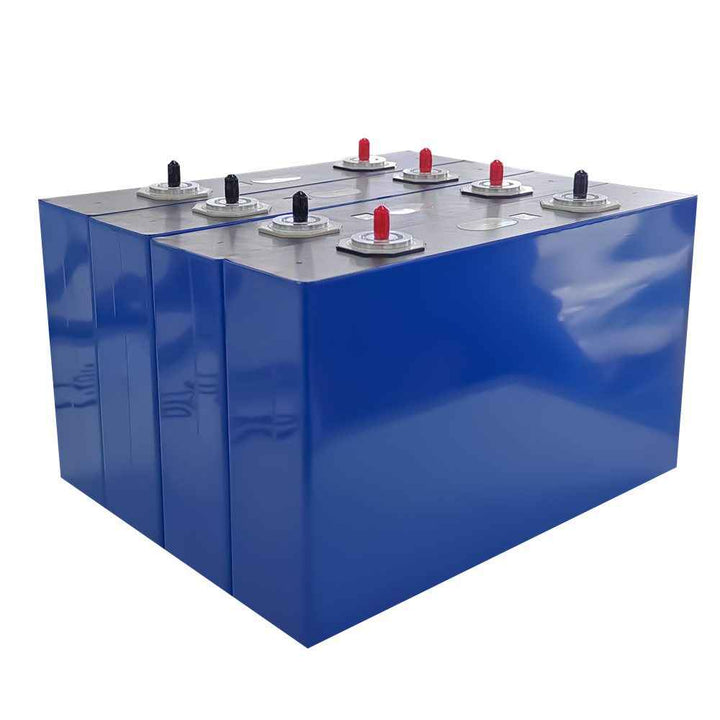

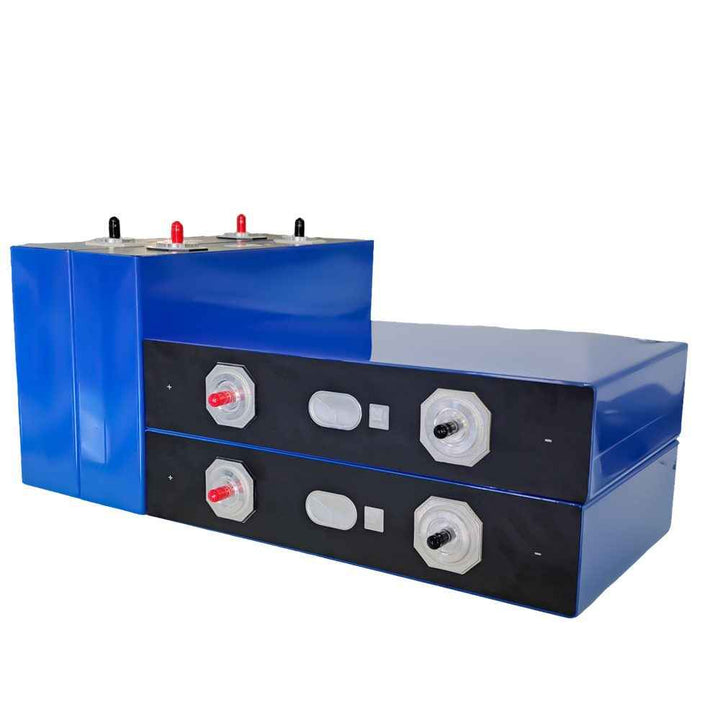

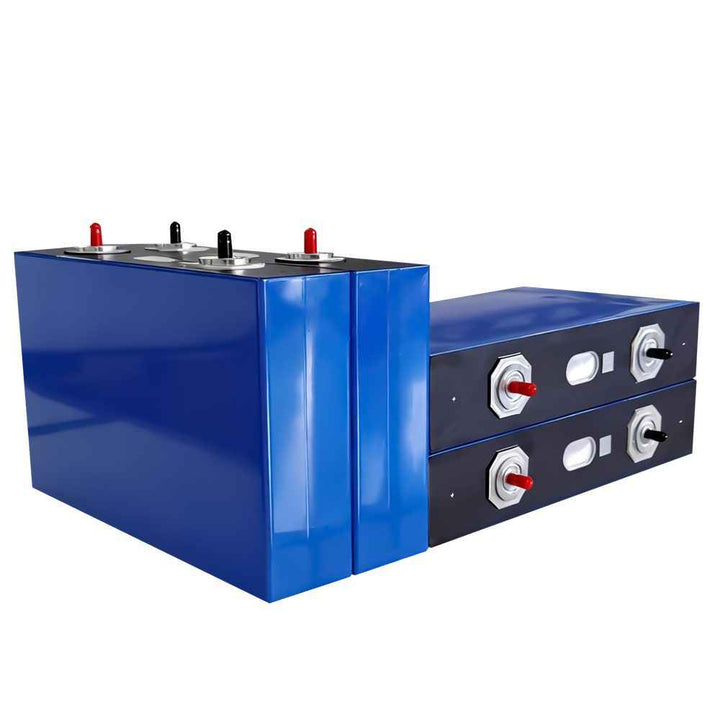

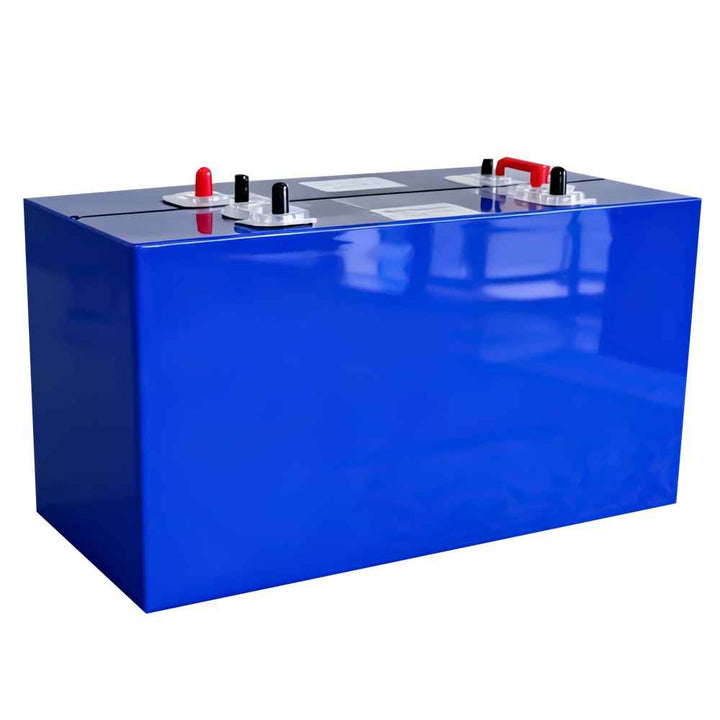

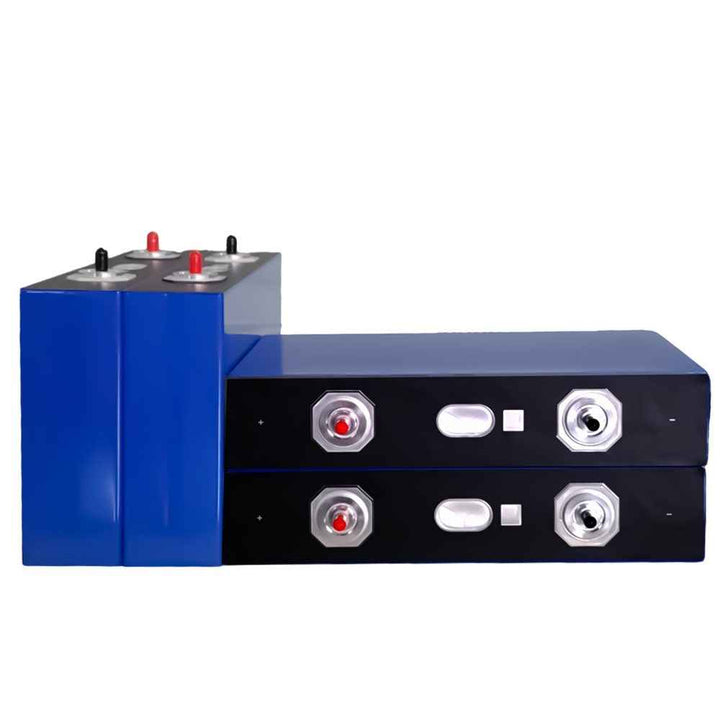

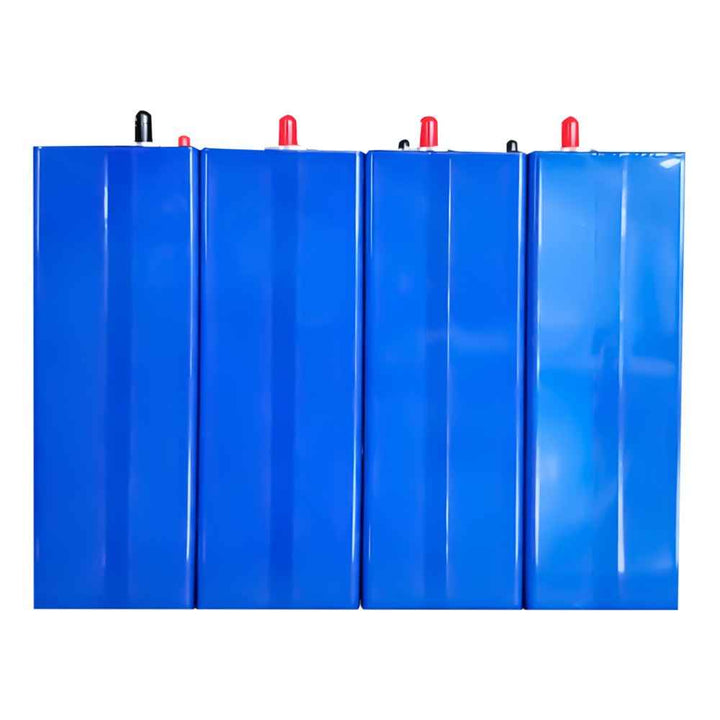

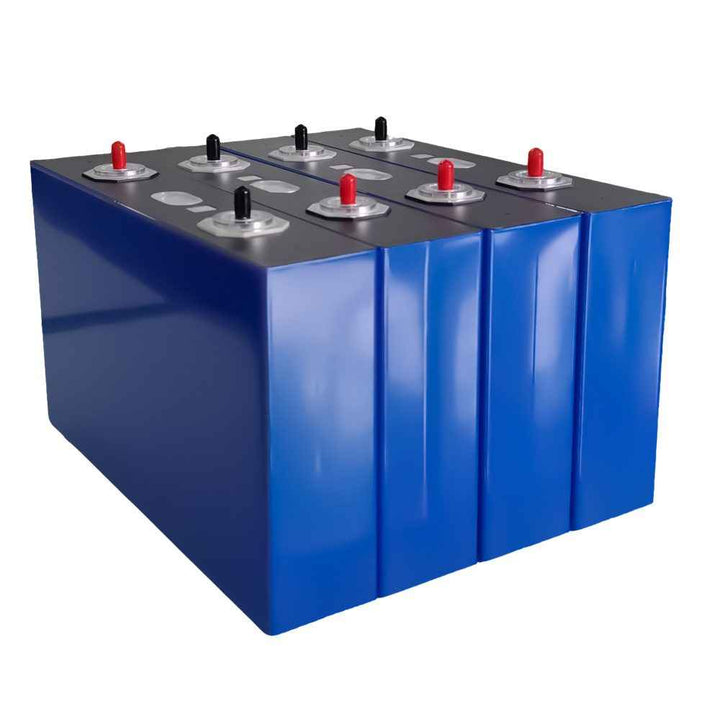

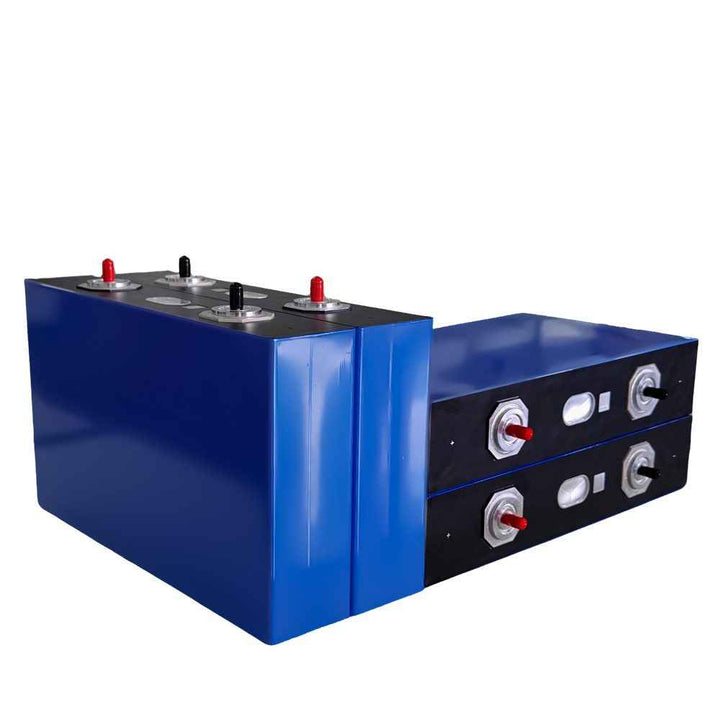

The EVE MB56 is a 3.2V 628Ah large-format LiFePO4 prismatic cell delivering 2009.6 Wh of energy per cell – built for high-capacity solar storage, off-grid power and industrial-grade energy systems.
✔ Massive 628Ah capacity – 2009.6 Wh per cell, fewer cells per pack
✔ Ultra-long cycle life: ≥ 8000 cycles @ 70% SOH (25℃±2℃, 0.5C/0.5C)
✔ Ultra-low internal resistance for stable high-power output
✔ Wide temperature range: discharge from -30℃ to 60℃
Ideal for large-scale solar energy storage systems, home & commercial ESS, off-grid and industrial power applications, this MB56 cell lets you build higher-capacity packs with fewer cells and fewer connections – cutting assembly time while improving system reliability.
| Product Specifications | |
|---|---|
| Battery Brand | EVE |
| Battery Model | MB56 |
| Chemistry | Lithium Iron Phosphate (LiFePO4 / LFP) |
| Nominal Voltage | 3.2 V |
| Nominal Capacity | 628 Ah |
| Nominal Energy | 2009.6 Wh |
| Initial Internal Resistance (AC, 1 kHz) | ≤ 0.25 mΩ |
| Weight | 11.5 kg ± 0.3 kg |
| Dimensions (mm) | 207.2 × 71.7 × 352.3 (± 0.5) |
| Terminal | M8 Laser Welding Studs |
| Tightening Torque (Busbar Nuts) | 6 N·m |
| Voltage Parameters | |
|---|---|
| Operational Voltage | 2.5 V – 3.65 V |
| End-of-charge Voltage (Umax) | 3.65 V |
| End-of-discharge Voltage (Umin) | 2.5 V (T > 0℃) / 2.0 V (T ≤ 0℃) |
| Performance | |
|---|---|
| Cycle Life | ≥ 8000 cycles @ 70% SOH (25℃±2℃, 0.5C/0.5C) |
| Standard Charge / Discharge Power | 0.5P / 0.5P |
| Max Continuous Charge / Discharge Power | 0.5P / 0.5P |
| Cell Temperature Rise | ≤ 10℃ (25℃, 0.5P discharge) |
| Self-discharge | ≤ 3.5% / month (first month); ≤ 3.0% / month (after) |
| Swelling Force | ≤ 45,000 N @ 70% SOH; ≤ 55,000 N @ 60% SOH |
| Temperature Range | |
|---|---|
| Charging Temperature | 0℃ ~ 60℃ |
| Discharging Temperature | -30℃ ~ 60℃ |
| Storage Temperature | 0℃ ~ 35℃ |
| Safety Performance | |
|---|---|
| Over-charge / Over-discharge | No fire, No explosion |
| External Short-circuit | No fire, No explosion |
| Crush Test | No fire, No explosion |
Download Document:
EVE MB56 628Ah LiFePO4 Battery Cells Specification.pdf
NOTE!
1. One Cell will come with 1 busbar, 2 flange nuts 1 epoxy resin board for free. (e.g. 4 pcs Cells will come with 4 pcs busbars, 8 pcs flange nuts, 4 pcs epoxy resin boards)
2. Each cell shall be used under the strict monitor, control, and protection by the BMS.
3. Before the first use, always charge the cells to full voltage. | FAQ: LiFePO4 battery charging guide.
4. We will match (capacity, voltage, resistance) all cells before delivery.
5. The battery is suitable for DIY lovers with experience.
