Tewaycell 48V 51.2V 300Ah 15KWh LiFePO4 Mobile ESS With Active Balancer
Free Shipping, Free customs duties and Free tax, you don't need to pay any other fees!
Please Note: Tewaycell 51.2V 300Ah 15kwh lifepo4 battery “TW-MB51300-200A-HWB-DE” are in stock in the European warehouse.Limited quantity! Shop Now!
Free Shipping & Free TAX
Our current price is the final price, free shipping, free customs duties and tax, you don't need to pay any other fees.
【Communication】: Tewaycell 48V 51.2V lifepo4 battery can communicate with these brands of inverters：Growatt, Goodwe, Deye, SofarSolar, Voltronic, Victron, SRNE, Megarevo, PYLONTECH, Luxpowertek, Sorortec, SMA, GINLONG, MUST, TBB, STUDER, Solis, etc. (Contact us for compatibility with other inverters)
【Feature】: Tewaycell 48V 300Ah 15KWh lithium battery built-in active balancer module and lifepo4 temperature-sensitive fire extinguisher; The 100A model 15kwh battery comes with an air switch; the 200A battery model does not have an air switch due to lack of space, but you can connect an external air switch.

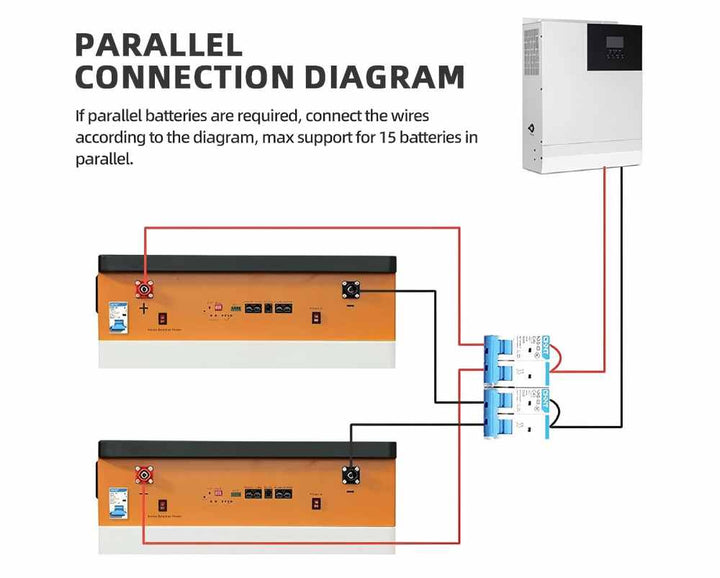

【Energy Expansion】: Tewaycell 15KWh lifepo4 battery supports parallel connection to expand capacity and maximum parallel 15pcs 15kwh lifepo4 battery; Parallel connection requires the same model and brand for optimal performance; It also can be paired with Tewaycell 15kWh built in 5kw all-in-one unit, for even greater flexibility and power.
【Usage】: Tewaycell 15KWh lifepo4 mobile energy storage battery features a portable design, perfect for solar home systems, power outages, off-grid living.
【Packaging】: The wooden box packaging is firm and stable to ensure that the product is not damaged during transportation; And the package usually includes: 1pc 15kwh ESS, 1 pair of positive and negative battery cables, 1pc RS232 cable, manual, if you order more than 1pc of 48V 51.2V 300Ah 15kwh lifepo4 battery, we will provide additional battery-to-battery communication cable.
【Note】：If you want to connect products in parallel, it is recommended to order them all at once, because products purchased at different times use different batches of lifepo4 cells. In this case, when connecting them in parallel, the product differentiation will be relatively obvious；If you are a repeat customer, please kindly confirm the information with customer service before placing an order when repurchasing the 15kwh lifepo4 battery "TW-MB51300-200A-HWB-DE" from the European warehouse.
Document Download
User manual.PDF
| Nominal Voltage | TW-MB51300-100A-HWB (16S) | TW-MB51300-200A-HWB (16S) |
| Max. Continuous Output Power | 5000W | 10000W |
| Nominal Capacity | 300Ah@0.2C | |
| Energy | 15360Wh | |
| Internal Resistance | 50≤mΩ | |
| Cycle Life | >4000 Cycles @ 0.2C /25℃Charging/Discharging at100%DOD,Until 100% Capacity. | |
| >6000 Cycles @ 0.2C/25℃ Charging/Discharging at 80%DOD,Until 80% Capacity. | ||
| Self Discharge | ≤3.5% per month at 25℃ | |
| Charging Voltage | 56.8-57.6V | |
| Charging Mode（CC/CV） | At 0℃~45℃ temperature, charged to57.6V at a constant current of 0.2C, and then, changed continuously with a constant voltage of 57.6V until the current was not | |
| Charging Current | more than 0.02C. | |
| Max.Charging Current | 100A | 200A |
| Discharging Current | 0.2C | |
| Max. Continuous Current | 100A | 200A |
| Max.Pulse Current | 200A（＜30S） | 250A(<1S） |
| Discharging Cut-off Voltage | 43.2~58.4V | |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP22 | |
| Cell & Format | IFR N300,16S1P | |
| Casing | SPCC | |
| Dimension(L*W*H*TH) | 900(with pulleys 905)*520*300mm | |
| Weight | Approx. 136Kg | Approx. 138Kg |
| Terminal | 120A Self-Locking Fitting Quick Release connector | 250A Quick-plug self-locking plug |
| Communication protocol | RS485/CAN/RS232 | |
| Support inverter brand | Growatt 、Deye 、Goodwe 、voltronic 、Sofar 、VICTRON、Megarevo 、SRNE、PYLON 、Luxpowertek 、Sorotec 、SMA 、GINLONG 、MUST 、TBB 、STUDER | |
Precautions
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
